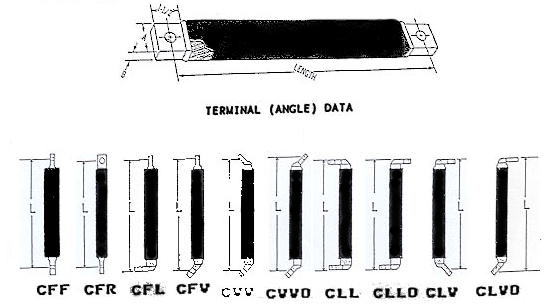

Jumpers are available in circular mill sizes from 400MCM to 2,000MCM as a standard. Other circular sizes are available at the customers request. Terminals can be furnished with any desired angle (see terminal style and dimension chart). As a standard and unless otherwise ordered: (1) the 1-1/4'' width and corresponding thickness will be furnished up to and including the 1200 MCM size, (2) the 1500 MCM size will be furnished in the 1-3/8'' width and (3) the 200 MCM size will be furnished in the 1-1/2'' width. |
|
|
